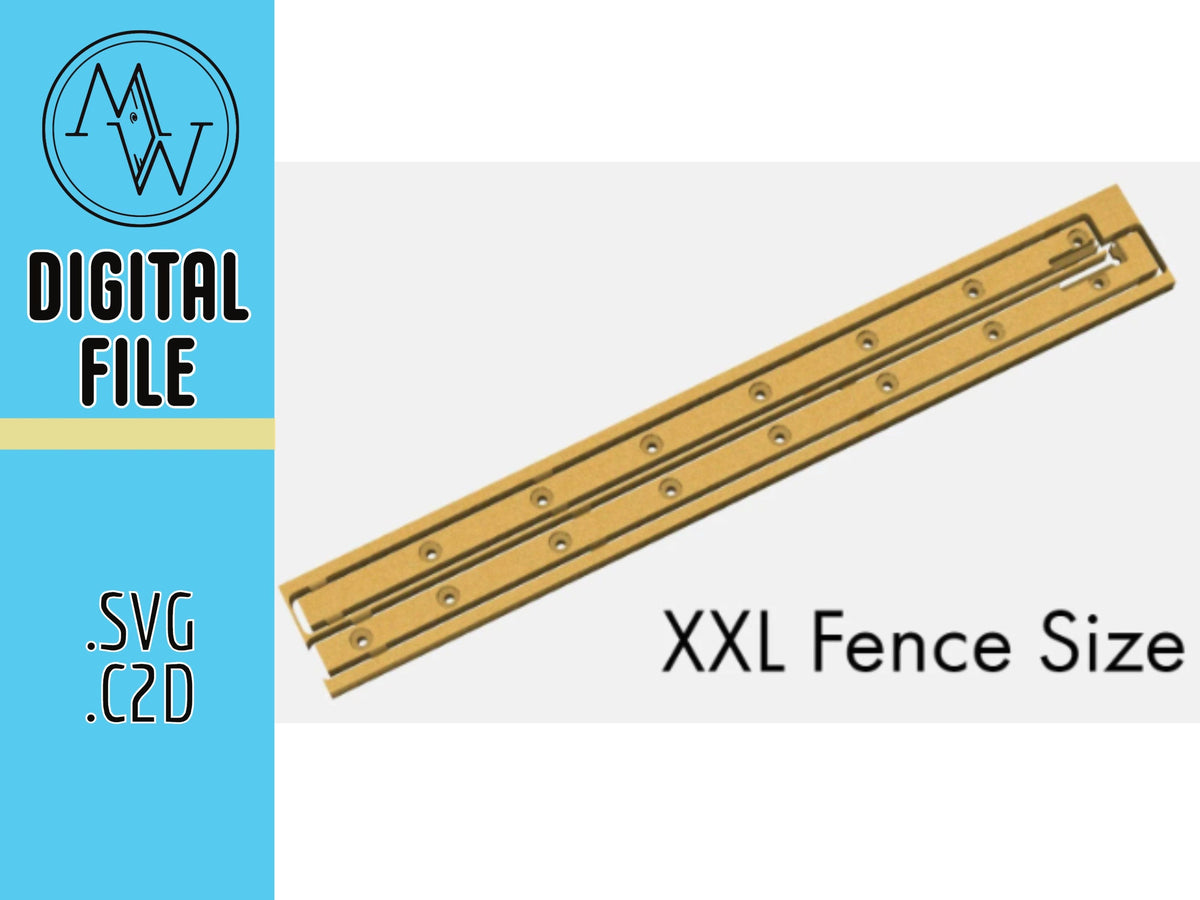

When you want a consistant X and Y zero point the best way to do that on the CNC is by using a fence. I've designed a fence to fit into my custom wasteboard. Now you can get consistent clamping and zeroing with large or small pieces. This will provide a fence for two sides of the wasteboard I designed. I use it on the front left, so that you can get a constant ZERO for X and Y. It also has an indent for the Touch Probe to fit. You can use mdf or plywood for the fence.
(I prefer mdf for its lack of wood movement an ease of cutting on an endmill). The same hardware that is used to hold down my clamps are used to hold down the fence.
Here's the links to the hardware (click to purchase):
1/4 - 20 hex bolts
1/4 - 20 washers
Click Below to go to the Etsy Purchase Page:
Myers Woodshop CNC Wasteboard Fence File
Here's a video I put up on my youtube channel that walks you through the steps on how to cut and create the fence from my file. Make sure to thumbs up and subscribe when your there!
